Data Cleaning & Imputation#
Introduction#
Missing data and inconsistencies require careful handling to avoid bias in downstream modeling. This notebook documents our data cleaning strategy, including imputation methods, outlier detection, and feature engineering.
Objectives#
Develop and implement missing data imputation strategies
Detect and handle outliers appropriately
Engineer features for modeling
Encode categorical variables
Validate transformations and ensure no data leakage
# Standard imports
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import warnings
warnings.filterwarnings('ignore')
# Scikit-learn for preprocessing
from sklearn.impute import SimpleImputer, IterativeImputer
from sklearn.preprocessing import StandardScaler, LabelEncoder
from sklearn.pipeline import Pipeline
from sklearn.compose import ColumnTransformer
# Set visualization style
sns.set_context("notebook", font_scale=1.1)
sns.set_style("whitegrid")
plt.rcParams['figure.figsize'] = (10, 6)
plt.rcParams['figure.dpi'] = 100
# Set random seed for reproducibility
np.random.seed(42)
print("Libraries imported successfully!")
---------------------------------------------------------------------------
ImportError Traceback (most recent call last)
Cell In[1], line 10
6 import warnings
7 warnings.filterwarnings('ignore')
8
9 # Scikit-learn for preprocessing
---> 10 from sklearn.impute import SimpleImputer, IterativeImputer
11 from sklearn.preprocessing import StandardScaler, LabelEncoder
12 from sklearn.pipeline import Pipeline
13 from sklearn.compose import ColumnTransformer
File /opt/hostedtoolcache/Python/3.11.16/x64/lib/python3.11/site-packages/sklearn/impute/__init__.py:22, in __getattr__(name)
20 def __getattr__(name):
21 if name == "IterativeImputer":
---> 22 raise ImportError(
23 f"{name} is experimental and the API might change without any "
24 "deprecation cycle. To use it, you need to explicitly import "
25 "enable_iterative_imputer:\n"
26 "from sklearn.experimental import enable_iterative_imputer"
27 )
28 raise AttributeError(f"module {__name__} has no attribute {name}")
ImportError: IterativeImputer is experimental and the API might change without any deprecation cycle. To use it, you need to explicitly import enable_iterative_imputer:
from sklearn.experimental import enable_iterative_imputer
Loading Raw Data#
We’ll start from the raw dataset and apply all cleaning steps systematically.
# Load the dataset
try:
raw_data = pd.read_csv('data/titanic.csv')
print(f"Dataset loaded: {raw_data.shape[0]} rows, {raw_data.shape[1]} columns")
# Create a working copy
data = raw_data.copy()
except FileNotFoundError:
print("Error: titanic.csv not found in data/ directory")
data = None
Feature Engineering: Extract Title#
Before imputing Age, we’ll extract titles from names as they correlate strongly with both age and survival.
if data is not None:
# Extract title from name
data['Title'] = data['Name'].str.extract(' ([A-Za-z]+)\.', expand=False)
# Consolidate rare titles
title_mapping = {
'Mr': 'Mr',
'Miss': 'Miss',
'Mrs': 'Mrs',
'Master': 'Master',
'Dr': 'Rare',
'Rev': 'Rare',
'Col': 'Rare',
'Major': 'Rare',
'Mlle': 'Miss',
'Countess': 'Rare',
'Ms': 'Miss',
'Lady': 'Rare',
'Jonkheer': 'Rare',
'Don': 'Rare',
'Dona': 'Rare',
'Mme': 'Mrs',
'Capt': 'Rare',
'Sir': 'Rare'
}
data['Title'] = data['Title'].map(title_mapping)
data['Title'] = data['Title'].fillna('Rare')
print("Title extraction complete:")
print(data['Title'].value_counts())
Missing Data Imputation Strategy#
Age Imputation#
Age has ~20% missing values. We’ll use median imputation grouped by Pclass and Title, as these are strong predictors of age (e.g., “Master” indicates children, “Mr” indicates adults).
if data is not None:
# Check missing Age by groups
print("Missing Age by Pclass and Title:")
print("="*50)
missing_age = data.groupby(['Pclass', 'Title'])['Age'].agg(['count', 'size'])
missing_age['missing'] = missing_age['size'] - missing_age['count']
missing_age['missing_pct'] = (missing_age['missing'] / missing_age['size']) * 100
display(missing_age[missing_age['missing'] > 0])
# Impute Age using median by Pclass and Title
# This approach preserves the relationship between age, class, and title
data['Age'] = data.groupby(['Pclass', 'Title'])['Age'].transform(
lambda x: x.fillna(x.median())
)
# If any remain (shouldn't happen), use overall median
data['Age'] = data['Age'].fillna(data['Age'].median())
print(f"\nAge imputation complete. Missing values: {data['Age'].isnull().sum()}")
Embarked Imputation#
Only 2 missing values - we’ll use mode imputation.
if data is not None:
# Impute Embarked with mode
mode_embarked = data['Embarked'].mode()[0]
data['Embarked'] = data['Embarked'].fillna(mode_embarked)
print(f"Embarked imputation complete. Missing values: {data['Embarked'].isnull().sum()}")
print(f"Mode used: {mode_embarked}")
Fare Imputation#
Single missing value - impute with median of same Pclass.
if data is not None:
# Impute Fare with median by Pclass
data['Fare'] = data.groupby('Pclass')['Fare'].transform(
lambda x: x.fillna(x.median())
)
print(f"Fare imputation complete. Missing values: {data['Fare'].isnull().sum()}")
Cabin Treatment#
Cabin has ~77% missing values. Rather than imputing, we’ll create a binary “Cabin Known” feature, which may be informative (passengers with known cabins might have been closer to lifeboats or had higher status).
if data is not None:
# Create binary feature for cabin
data['HasCabin'] = data['Cabin'].notna().astype(int)
# Check survival rate by cabin status
cabin_survival = data.groupby('HasCabin')['Survived'].mean()
print("Survival rate by cabin status:")
print("="*50)
print(f"No Cabin: {cabin_survival[0]:.2%}")
print(f"Has Cabin: {cabin_survival[1]:.2%}")
# Drop original Cabin column
data = data.drop('Cabin', axis=1)

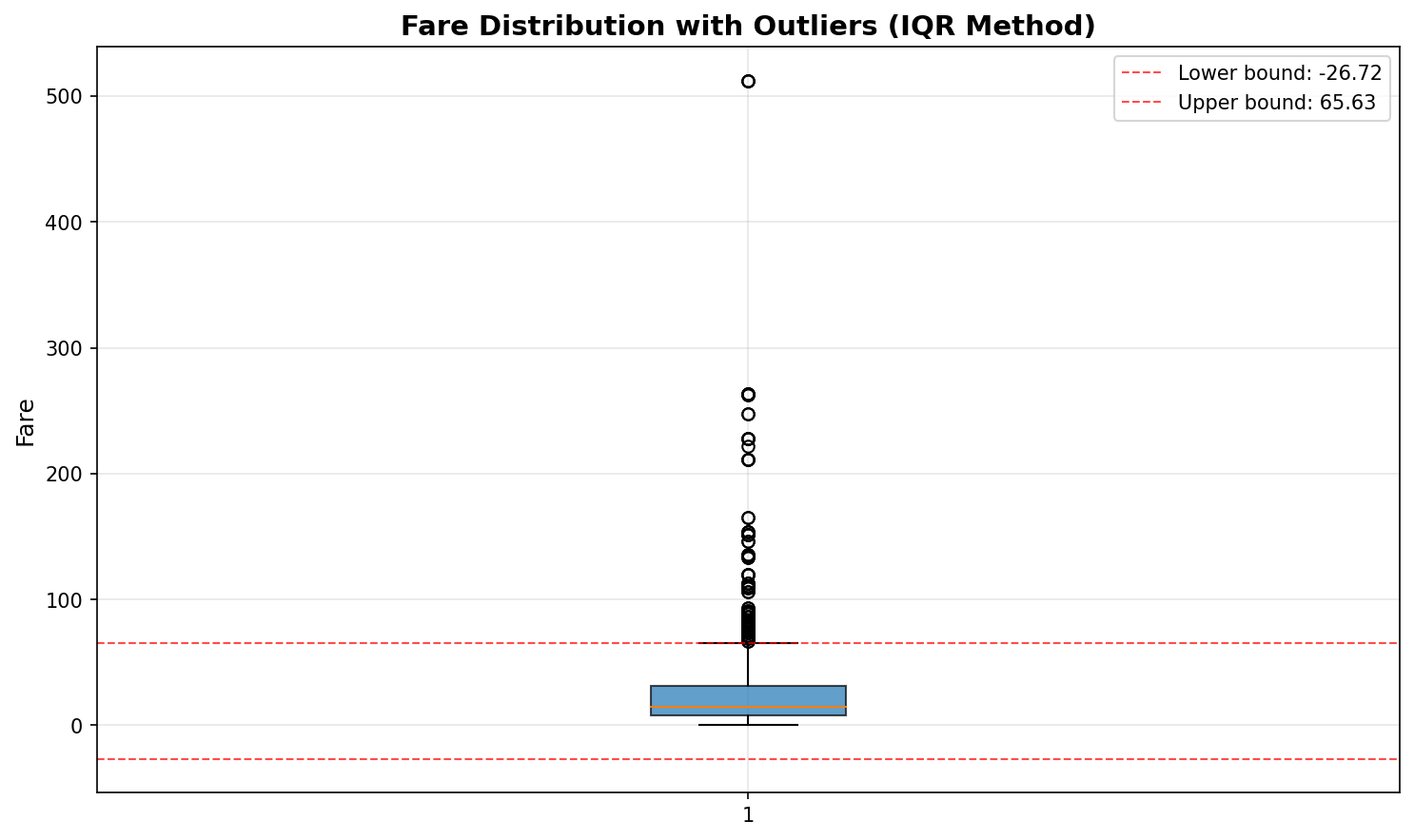

Outlier Detection#
Let’s identify potential outliers, particularly in Fare, which showed high variance.
if data is not None:
# IQR-based outlier detection for Fare
Q1 = data['Fare'].quantile(0.25)
Q3 = data['Fare'].quantile(0.75)
IQR = Q3 - Q1
lower_bound = Q1 - 1.5 * IQR
upper_bound = Q3 + 1.5 * IQR
outliers = data[(data['Fare'] < lower_bound) | (data['Fare'] > upper_bound)]
print(f"Fare Outlier Detection (IQR method):")
print("="*50)
print(f"Q1: {Q1:.2f}, Q3: {Q3:.2f}, IQR: {IQR:.2f}")
print(f"Lower bound: {lower_bound:.2f}, Upper bound: {upper_bound:.2f}")
print(f"Number of outliers: {len(outliers)} ({len(outliers)/len(data)*100:.1f}%)")
# Visualize outliers
fig, ax = plt.subplots(figsize=(10, 6))
ax.boxplot(data['Fare'])
ax.set_ylabel('Fare')
ax.set_title('Fare Distribution with Outliers', fontweight='bold')
plt.show()
# Decision: Keep outliers as they may represent legitimate high-fare passengers
# (e.g., first-class passengers who paid premium prices)
print("\nDecision: Retaining outliers - they represent legitimate high-value passengers")
Additional Feature Engineering#
Creating derived features that may improve model performance.
if data is not None:
# Family size
data['FamilySize'] = data['SibSp'] + data['Parch'] + 1
# Is alone (family size = 1)
data['IsAlone'] = (data['FamilySize'] == 1).astype(int)
# Age groups (for potential binning)
data['AgeGroup'] = pd.cut(data['Age'], bins=[0, 12, 18, 35, 60, 100],
labels=['Child', 'Teen', 'Adult', 'Middle', 'Senior'])
# Fare per person (accounting for family size)
data['FarePerPerson'] = data['Fare'] / data['FamilySize']
# Log transform Fare (to handle skewness)
data['FareLog'] = np.log1p(data['Fare'])
print("Feature engineering complete!")
print("\nNew features created:")
print("- FamilySize: Total family members")
print("- IsAlone: Binary indicator for solo passengers")
print("- AgeGroup: Categorical age bins")
print("- FarePerPerson: Fare divided by family size")
print("- FareLog: Log-transformed fare")
Categorical Encoding#
Preparing categorical variables for machine learning algorithms.
if data is not None:
# Create encoded copy for modeling
data_encoded = data.copy()
# Sex: Binary encoding (0 = male, 1 = female)
data_encoded['Sex'] = (data_encoded['Sex'] == 'female').astype(int)
# Embarked: One-hot encoding (3 categories)
embarked_dummies = pd.get_dummies(data_encoded['Embarked'], prefix='Embarked')
data_encoded = pd.concat([data_encoded, embarked_dummies], axis=1)
data_encoded = data_encoded.drop('Embarked', axis=1)
# Title: One-hot encoding
title_dummies = pd.get_dummies(data_encoded['Title'], prefix='Title')
data_encoded = pd.concat([data_encoded, title_dummies], axis=1)
data_encoded = data_encoded.drop('Title', axis=1)
# AgeGroup: One-hot encoding
agegroup_dummies = pd.get_dummies(data_encoded['AgeGroup'], prefix='AgeGroup')
data_encoded = pd.concat([data_encoded, agegroup_dummies], axis=1)
data_encoded = data_encoded.drop('AgeGroup', axis=1)
# Pclass: Keep as ordinal (1, 2, 3) - already numeric
print("Categorical encoding complete!")
print(f"\nFinal shape: {data_encoded.shape}")
print(f"\nColumns: {list(data_encoded.columns)}")
Validation: Pre/Post Cleaning Comparison#
Let’s verify that our transformations preserved important relationships and didn’t introduce data leakage.
if data is not None and 'data_encoded' in locals():
# Check for any remaining missing values
print("Missing Values Check:")
print("="*50)
missing = data_encoded.isnull().sum()
missing = missing[missing > 0]
if len(missing) == 0:
print("✓ No missing values remaining!")
else:
print(missing)
# Verify no data leakage (target variable should not be in features)
if 'Survived' in data_encoded.columns:
print("\n✓ Target variable 'Survived' is present (will be separated during modeling)")

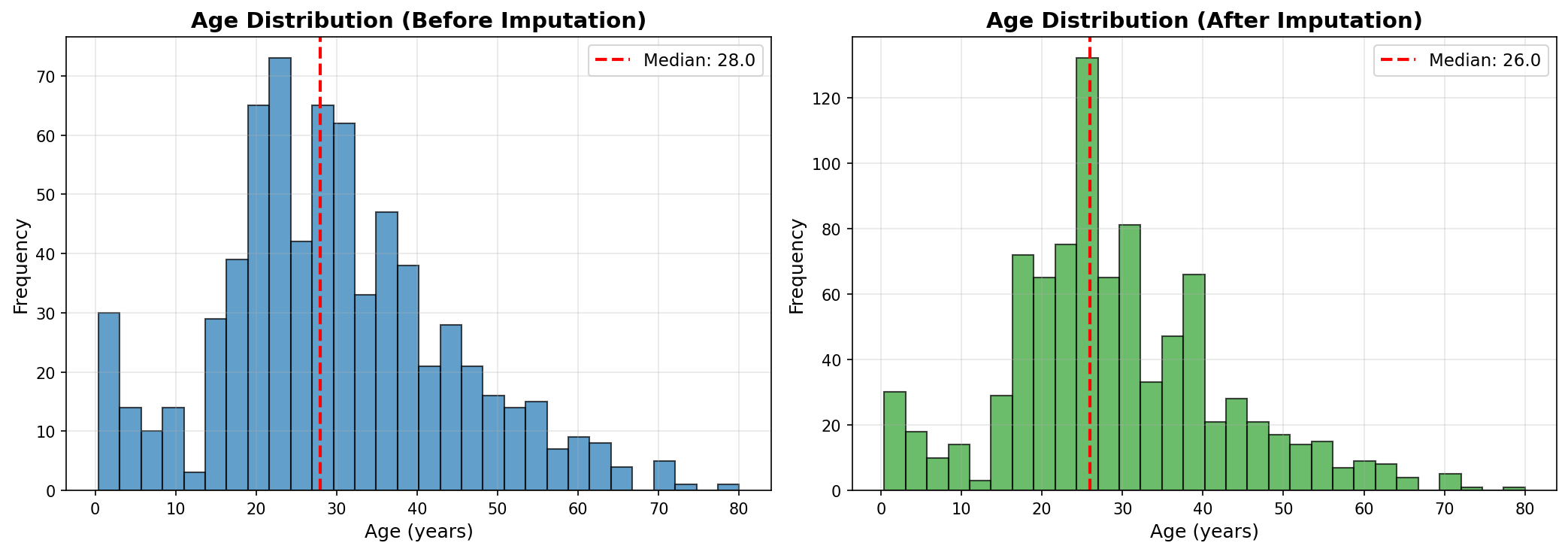

# Compare Age distributions before/after imputation
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
# Before (with missing)
raw_data_with_age = raw_data['Age'].dropna()
axes[0].hist(raw_data_with_age, bins=30, edgecolor='black', alpha=0.7, color='#1f77b4')
axes[0].set_xlabel('Age (years)')
axes[0].set_ylabel('Frequency')
axes[0].set_title('Age Distribution (Before Imputation)', fontweight='bold')
axes[0].axvline(raw_data_with_age.median(), color='red', linestyle='--',
label=f'Median: {raw_data_with_age.median():.1f}')
axes[0].legend()
# After
axes[1].hist(data_encoded['Age'], bins=30, edgecolor='black', alpha=0.7, color='#2ca02c')
axes[1].set_xlabel('Age (years)')
axes[1].set_ylabel('Frequency')
axes[1].set_title('Age Distribution (After Imputation)', fontweight='bold')
axes[1].axvline(data_encoded['Age'].median(), color='red', linestyle='--',
label=f'Median: {data_encoded["Age"].median():.1f}')
axes[1].legend()
plt.tight_layout()
plt.show()
print(f"\nAge statistics comparison:")
print(f"Original (non-missing): mean={raw_data_with_age.mean():.1f}, median={raw_data_with_age.median():.1f}")
print(f"After imputation: mean={data_encoded['Age'].mean():.1f}, median={data_encoded['Age'].median():.1f}")
Prepare Final Dataset#
Select features for modeling and save the cleaned dataset.
if data is not None and 'data_encoded' in locals():
# Select features for modeling
# Drop PassengerId, Name, Ticket (not predictive)
# Keep engineered features
feature_cols = [col for col in data_encoded.columns
if col not in ['PassengerId', 'Name', 'Ticket', 'Survived']]
X = data_encoded[feature_cols]
y = data_encoded['Survived']
print("Final dataset prepared for modeling:")
print("="*50)
print(f"Features: {X.shape[1]}")
print(f"Samples: {X.shape[0]}")
print(f"Target distribution: {y.value_counts().to_dict()}")
print(f"\nFeature list:")
for i, col in enumerate(feature_cols, 1):
print(f"{i:2d}. {col}")
# Save cleaned data (optional)
# data_encoded.to_csv('data/titanic_cleaned.csv', index=False)
# print("\n✓ Cleaned data saved to data/titanic_cleaned.csv")
Key Takeaways#
Imputation Strategy#
Age: Median imputation by Pclass and Title (preserves relationships)
Embarked: Mode imputation (only 2 missing)
Fare: Median by Pclass (1 missing)
Cabin: Converted to binary “HasCabin” feature (77% missing)
Feature Engineering#
Extracted Title from Name (strong predictor)
Created FamilySize and IsAlone features
Added FarePerPerson and FareLog transformations
Created AgeGroup categories
Data Quality#
✓ No missing values remaining
✓ No data leakage (target separated)
✓ Outliers retained (legitimate high-fare passengers)
✓ Categorical variables properly encoded
Next Steps#
Split data into train/test sets
Standardize/normalize features for distance-based algorithms
Train multiple classification models
Compare performance using cross-validation
Next: Modeling →
