SARIMA & Seasonal Extensions#
Navigation: ← Previous: ARMA & ARIMA | Next: State-Space Models →
SARIMA extends ARIMA with seasonal differencing and seasonal AR/MA terms. The Box-Jenkins airline model ARIMA(0,1,1)(0,1,1)₁₂ remains the canonical benchmark.
from pathlib import Path
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings('ignore')
plt.style.use('seaborn-v0_8-whitegrid')
DATA_DIR = Path('data')
if not DATA_DIR.exists():
DATA_DIR = Path('projects/time-series-analysis/data')
def load_series(name):
"""Load a bundled CSV as a DatetimeIndex Series."""
df = pd.read_csv(DATA_DIR / name, parse_dates=['date'])
return df.set_index('date')['value'].sort_index()
def load_air_passengers():
path = DATA_DIR / 'air_passengers.csv'
if path.exists():
return load_series('air_passengers.csv')
from statsmodels.datasets import get_rdataset
air = get_rdataset('AirPassengers', 'datasets').data
s = air['value']
s.index = pd.date_range('1949-01', periods=len(s), freq='MS')
return s
def load_milk():
path = DATA_DIR / 'monthly_milk.csv'
if path.exists():
return load_series('monthly_milk.csv')
url = 'https://raw.githubusercontent.com/jbrownlee/Datasets/master/monthly-milk-production-pounds.csv'
return pd.read_csv(url, index_col=0, parse_dates=True).squeeze()
def load_co2():
from statsmodels.datasets import co2
return co2.load().data.resample('MS').mean().ffill().squeeze()
def load_sunspots():
from statsmodels.datasets import sunspots
d = sunspots.load_pandas().data
return d.set_index('YEAR')['SUNACTIVITY']
def load_retail():
path = DATA_DIR / 'uk_retail_sales.csv'
if path.exists():
return load_series('uk_retail_sales.csv')
raise FileNotFoundError('uk_retail_sales.csv not found in data/')
from statsmodels.tsa.statespace.sarimax import SARIMAX
from statsmodels.stats.diagnostic import acorr_ljungbox
from pmdarima import auto_arima
The Airline Model#
ARIMA\((0,1,1)(0,1,1)_{12}\): one regular and one seasonal difference, one MA and one seasonal MA.
air = load_air_passengers()
airline = SARIMAX(air, order=(0, 1, 1), seasonal_order=(0, 1, 1, 12)).fit(disp=False)
print(airline.summary().tables[1])
print(f'AIC={airline.aic:.1f}')
==============================================================================
coef std err z P>|z| [0.025 0.975]
------------------------------------------------------------------------------
ma.L1 -0.3087 0.068 -4.507 0.000 -0.443 -0.174
ma.S.L12 -0.1075 0.091 -1.184 0.236 -0.285 0.070
sigma2 135.4236 15.443 8.769 0.000 105.156 165.691
==============================================================================
AIC=1021.0
/opt/hostedtoolcache/Python/3.11.16/x64/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:480: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
self._init_dates(dates, freq)
/opt/hostedtoolcache/Python/3.11.16/x64/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:480: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
self._init_dates(dates, freq)

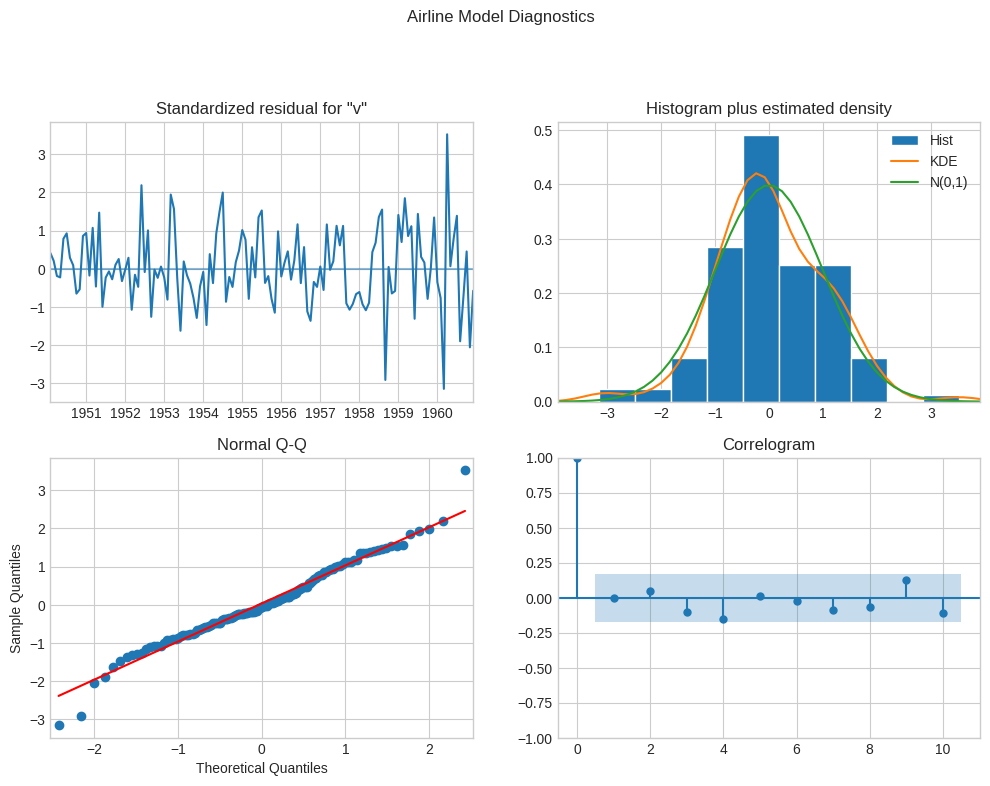

# Residual diagnostics
fig = airline.plot_diagnostics(figsize=(12, 8))
fig.suptitle('Airline Model Diagnostics', y=1.02)
fig
# auto-ARIMA with constrained search for CI speed
auto = auto_arima(
air, seasonal=True, m=12, stepwise=True, suppress_warnings=True,
max_p=2, max_q=2, max_P=1, max_Q=1, information_criterion='aic'
)
print(auto.summary())
SARIMAX Results
===========================================================================================
Dep. Variable: y No. Observations: 144
Model: SARIMAX(2, 1, 1)x(0, 1, [], 12) Log Likelihood -504.923
Date: Thu, 03 Sep 2026 AIC 1017.847
Time: 22:08:01 BIC 1029.348
Sample: 01-01-1949 HQIC 1022.520
- 12-01-1960
Covariance Type: opg
==============================================================================
coef std err z P>|z| [0.025 0.975]
------------------------------------------------------------------------------
ar.L1 0.5960 0.085 6.987 0.000 0.429 0.763
ar.L2 0.2143 0.091 2.343 0.019 0.035 0.394
ma.L1 -0.9819 0.038 -25.602 0.000 -1.057 -0.907
sigma2 129.3133 14.556 8.884 0.000 100.783 157.843
===================================================================================
Ljung-Box (L1) (Q): 0.00 Jarque-Bera (JB): 7.68
Prob(Q): 0.98 Prob(JB): 0.02
Heteroskedasticity (H): 2.33 Skew: -0.01
Prob(H) (two-sided): 0.01 Kurtosis: 4.19
===================================================================================
Warnings:
[1] Covariance matrix calculated using the outer product of gradients (complex-step).

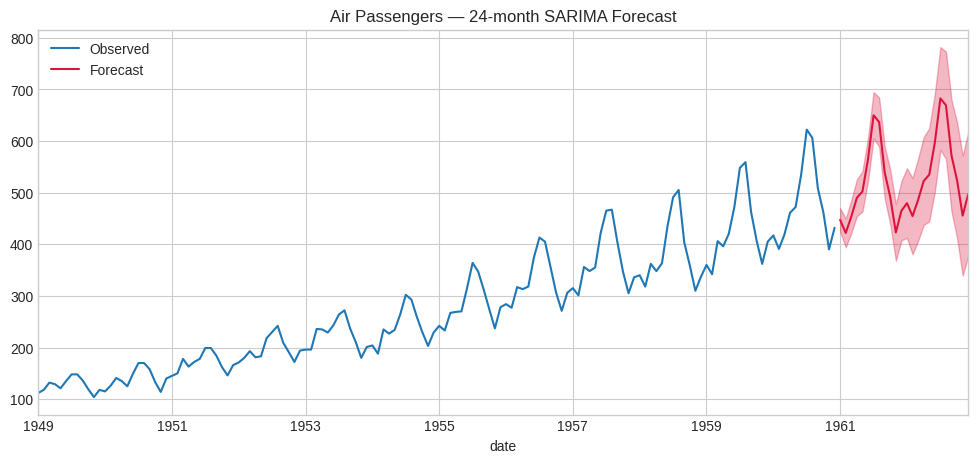

# 24-month forecast with intervals
forecast = airline.get_forecast(steps=24)
fc_mean = forecast.predicted_mean
fc_ci = forecast.conf_int()
fig, ax = plt.subplots(figsize=(12, 5))
air.plot(ax=ax, label='Observed')
fc_mean.plot(ax=ax, label='Forecast', color='crimson')
ax.fill_between(fc_ci.index, fc_ci.iloc[:, 0], fc_ci.iloc[:, 1], alpha=0.3, color='crimson')
ax.legend()
ax.set_title('Air Passengers — 24-month SARIMA Forecast')
fig
Production seasonal adjustment systems (X-13ARIMA-SEATS, TRAMO-SEATS, JDemetra+) implement these models at scale for official statistics — the airline model is their intellectual ancestor.
milk = load_milk()
milk_sarima = SARIMAX(milk, order=(1, 1, 1), seasonal_order=(1, 1, 1, 12)).fit(disp=False)
print(f'Milk SARIMA AIC={milk_sarima.aic:.1f}')
/opt/hostedtoolcache/Python/3.11.16/x64/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:480: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
self._init_dates(dates, freq)
/opt/hostedtoolcache/Python/3.11.16/x64/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:480: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
self._init_dates(dates, freq)
Milk SARIMA AIC=980.7
Key Takeaways#
Seasonal differencing: \((1-B^{12})y_t\) removes fixed monthly season; combine with regular differencing.
Airline model: Still competitive after 50 years — parsimony beats complexity on short series.
auto-ARIMA: Useful for exploration; always verify with residual diagnostics.
Production link: ONS seasonal adjustment pipelines extend these ideas with regARIMA and calendar effects.
